100ml 2L Automatic PET Bottle Blowing Machine 220V Eceng

Name: 100ml 2L Automatic PET Bottle Blowing Machine 220V Eceng
Brand: eceng
Price: 1 USD

China 100ml 2L Automatic PET Bottle Blowing Machine 220V Eceng wholesale

Place of Origin : China

Brand Name : eceng

Model Number : k6

Certification : CE/ISO

Packaging Details : packed by wooden pallet or as customer request

Supply Ability : 15 Set/Sets per Month

MOQ : 1set

Payment Terms : L/C, T/T, Western Union

Delivery Time : 60days

Condition : New

Blow Moulding Type : Stretch Blow Moulding

Voltage : 220V or as customer request

Applicable Industries : Manufacturing Plant

Video outgoing-inspection : Provided

Heating method : electric cycle heating

Service : Full technical training

Light tube : 32 pieces

Key words : plastic blowing machine

Output : 9000-12000

Contact Now

full automatic PET bottle blowing machine for 2L bottle blowing machine automatic

100ml 2L Automatic PET Bottle Blowing Machine 220V Eceng

specification

Model K6
Bottle type specification	Cavity	6
		Max.volume	2L
		Bottle mouth maximum overall diameter	28-30mm
		Bottle biggest diameter	100mm
		Bottle maximum height	330mm
Capacity specification	Theory output	9000~12000BPH
		Bottle type volume	500ML
		Bottle type weight	17g
		Bottle type	Round
Power specification	Light tube quantity	32pcs
		Light tube power	1.25KW
		Maximum heating power	40KW
		All electric machine installation	49KW
		Actual consumption	30%--60%
Air pressure specification	Work pressure	5-6kg/cm2
		Blow bottle pressure	25-45kg/cm2
		Higher -pressure gas consumption	8000Ltr/min
Air pressure specification	Work pressure	5-6 kg/cm2
		Temperature range	10℃
		Consumption	8000kcal/hr
		Forzen water flow	120L/min
Machine specification	Machine size	5.5x1.8x1.9
Machine specification		Machine weight	6.1ton

K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 1500 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

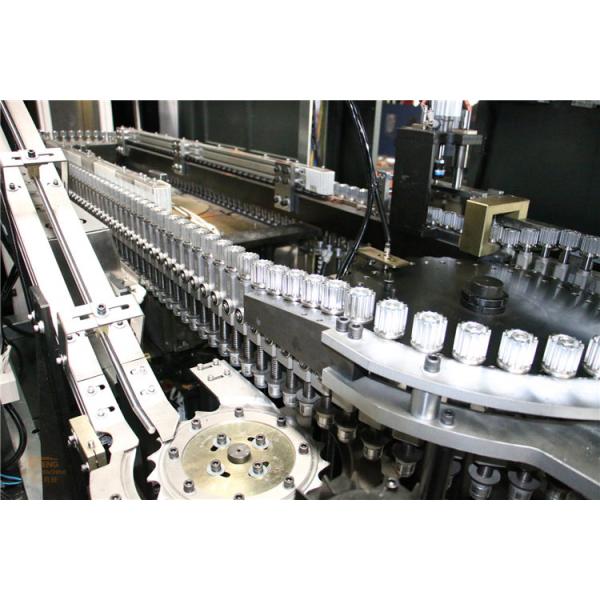

Detailed Images

K linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.

Kseries linear bottle blowing machine features:

1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.

2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.

3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.

4. manual and automatic methods of operation, human-machine interface control, simple operation.

5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.

6. less than 0.2% scrap rate for finished bottle .

blowing mould

our advantage

1. Resonable price

2. Good after service

3. experienced skilled workers and professional engineers

4. Good quality ,excellent service ,long life mould

5. on time delivery time

6.our engineers can be online for 24 hours to serve you

Company Introduction

Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,located in Zhangjiagang city,only 120km away from Shanghai.We are professional manufacturer of PET bottle blowing machines and plastic molds. We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 20,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging. Our products has covered all over China and exported to more than 100 countries,including Southest Asia,Middle East,South America,Africa etc.We’d like to provide high quality solution to clients with our enthusiasm and rich experience.We sincerely hope to establish business relationship with friends all over the world.

Packing&Shipping

Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.

After Sales Service

1.Installation, debug

We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.

2. Training

Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. the sample service

1' We can send you the video of the running machine.

2' You are welcome to come to visit our factory,and see the machine running.

4. We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.

5.well-trained & experienced staff are to answer all your inquiries in English and Chinese

6 .12 Months guarantee and life-long technical support.

7. Your business relationship with us will be confidential to any third party.

8. Good after-sale service offered, please get back to us if you got any questions.

FAQ

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
